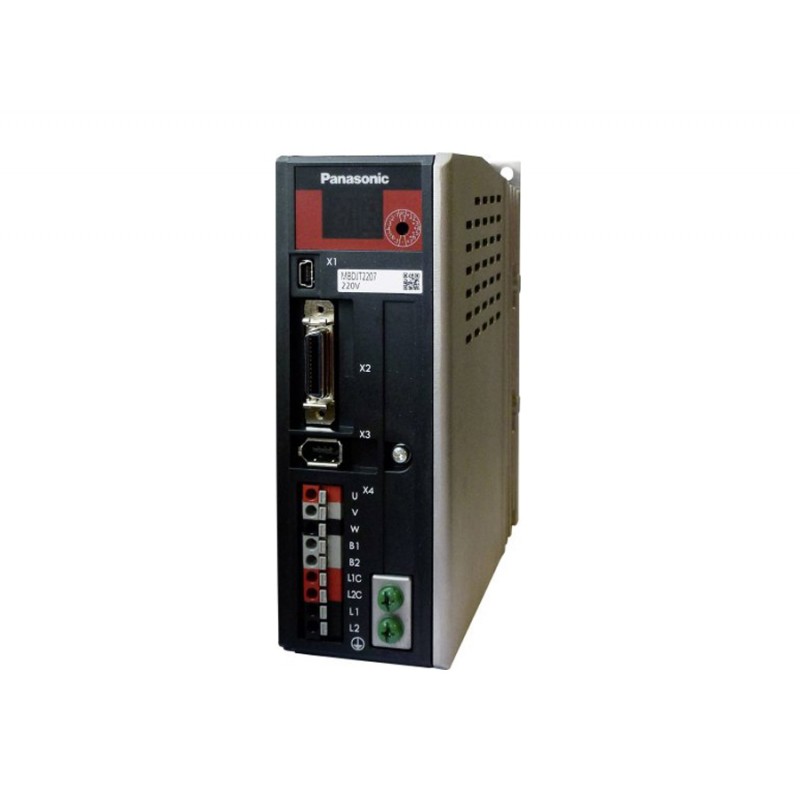

Simple And Cost-effective Servo Drive
Support Position Control Mode Only
1.0 KHz Velocity Response Frequency
500 KHz Input Pulse Frequency
Product Category - AC Servo System
Partner Name - Panasonic
Series Name - MINAS LIQI
Product - Driver
Watts - 1000
Communication - W/O Communication
Technical Specification
| Watt | 1000 | Supply Voltage | 200V | Communication | W/O Communication |
| Control Mode | Position | I/O | 6 Input /3 Output | Display | Not Removable |
| Full Close Loop | NO | Encoder Resolution | – | Brake | – |
| Torque (Nm) | – | RPM | – | Inertia Ratio (x 10-4 Kg * M2) | – |
| Motor Frame Size/Shaft Dia. (mm) | – | Motor Type | – |
Product Specification
MINAS LIQI Series Is The Simple And Cost-effective Servo Drive Solution From Panasonic. Especially For Dynamic Applications, MINAS LIQI Offers Many Advantages As Far As Reliability, Speed, And Precision Are Concerned Compared To Stepping Motors, Asynchronous Motors, Or Pneumatic Solutions. It Has A Real-time Auto Tuning Function During Operation. As For The MINAS A5 Series, The PANATERM Software Assists Users In Setting Up And Configuring The MINAS LIQI Series. The Series Is Optimally Suited For The Processing Industries Involving Food, Packaging, Printing, Metals, And Plastics.
